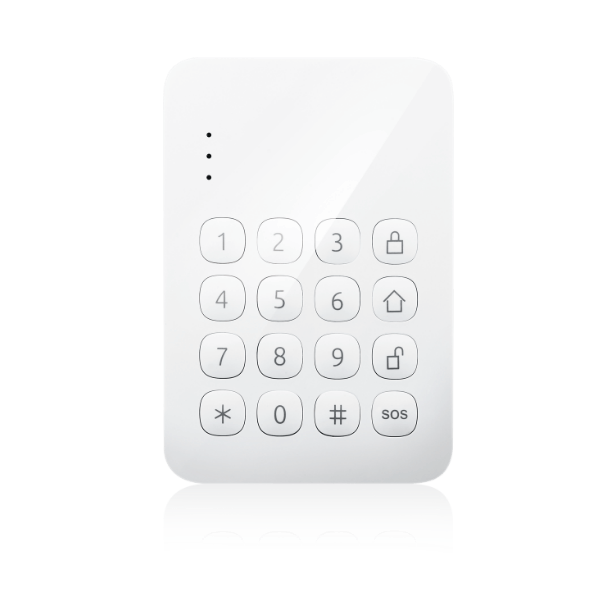

Alarm Keypad

This keypad works as arming/disarming devices, secured with admin and user password. It can be installed at entry /exit locations. Once there’s an emergency situation, press the SOS panic button. Users can disarm the system and open the door at the same time, which is very convenient and suitable for homes and offices.

KEY FEATURES

• Easy installation, user-friendly programming
• Power saving mode to maximize user experience
• Long life 1.5V AAA LR03 battery X 3pcs
• Button-touch keypad, 3 colors LED indication
• Arm, Disarm & Home Stay buttons activated by password

SPECIFICATIONS

• Standby Current: ≤6μA
• Transmitting Current: 10mA
• Transmitting Distance: 80m (Open area)
• Radio Frequency: 315MHZ/433MHZ (±75KHz)
• Operating Temperature: -20°C ~ 55°C
• OperatingHumidity: 80% (Non-condensing)
• Power Supply: 1.5V AAA / LR03 Battery x 3
• Dimensions (LxWxH): 141x96x14.5mm
